PTC LIQUID HEATING ELEMENTS

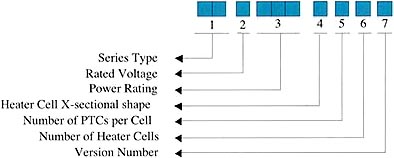

MODEL NOMENCLATURE

HL6200A311
HL :
HL Series
6 :
VR=10-16V
200 :
200W
A :
Tech drawing SVDD004
3 :
3 PTC per cell
1 :
1 cell total
1 :
Single-Pass
HL212KB862
HL :
HL Series
2 :
VR=220-240V
12K :
1,200W
B :
Tech drawing SVDD005
8 :
8 PTC per cell
6 :
6 cell total
2 :
Mult-Pass



STANARD MODELS
Model No.
VR(V)
P(W)
Water Flow Rate
T(C)
APPLICATIONS
HL6200A311
12
300
3L/hr
70
Coffee Pot Water Heater
HL21K5B612
240
1500
60L/hr
18
Water Heater for Washing Machine
HL212KB862
240
12,000
480L/hr
18
Instant Water Heater/Steam for Shower & Sauna
Note:T=Exit Water Temp-Input Water Temp (25C)

When placing an order, please provide specification paremeters as indicated in the above table.

Note 1:The table provides standard HL PTC heaters available for production.

Note 2:For heaters of non-standard dimensions, please send specific inquiries to our sales department.

Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations.
Non-standard unit quotations usually provided after the fabrication of the prototype.
