PTC SURFACE HEATING ELEMENTS

UL APPROVED HS SERIES HEATING ELEMENTS

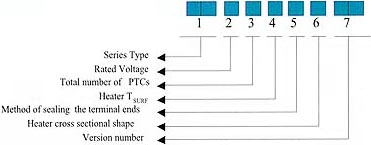

HS02K2A01
HS :	HS Series
0 :	VR=100-240V
2 :	2 PTC stones total
K :	TSURF=200�J/220V
2 :	Moisture resistant
A :	Rectangular
01 :	PPS plugs used

STANDARD MODELS

Model No.	V _R(V)	T _SURF(C)	HIPOT Rating	APPLICATIONS
HS21D3C01	220	1337C	500V/5mA/1sec	Insect repellent-liquid type
HS11D1A01	100	1307C	1000V/5mA/1sec	Insect repellent-gel pack type

HS22L2B01	220	2105C	2500V/5mA/1sec	Cup evaporator for medicated liquids or air freshener

HS63M3C01	12	2155C	2500V/5mA/1sec	Telescope lens or view screen heater to preventing moisture condensation

When placing an order, please provide specification parameters as indicated in the above table.

Note 1:The table provides standard heating elements available for production.

Note 2:For heaters of non-standard dimensions, please send specific inquiries to our sales department.

Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations. Non-standard unit quotation are usually provided after the fabrication of the prototype.
