PTC AIR HEATING ELEMENTS

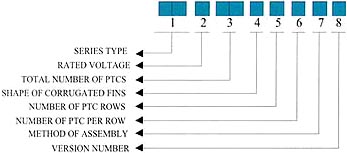

HF216U44B1
HI433U3BB2
HF :
Standard heating element
HI :
Electrically insulated element
2 :
Rated Voltage=220-240V
4 :
Rated Voltage=600V
16 :
Contains 16 PTC stones total
33 :
Contains 33 PTC stones total
U :
"U" shaped fins
U :
"U" shaped fins
4 :
Contains 4 PTC rows
3 :
Contains 3 PTC rows
4 :
4 ceramic chips per row
B :
11 ceramic chips per row
B :
Glued type heater
B :
Glued type heater
1 :
Version 1
1 :
Version 1



UL SERIES STANDARD MODEL HEATING ELEMENTS
Model No.
VR
(V)
Ir
(A)
Power
(W)
W/S Volt.
(V)
Dimension
(mm)
HF214U44A1(2DU44A)
220-240
8
1500
+5,-10�H
>360
120��107��15
HF114U44B1(1DU44B)
100-120
20
>240
96��88.5��15
HF214U44B1(2DU44B)
220-240
18
>360
HF108U24B1(18U24B)
100-120
11
750
+5,-10�H
>240
96��44.5��15
HF208U24B1(28U24B)
220-240
10
>360
HF104U14B1(14U14B)
100-120
6
400
+5,-10�H
>240
96��22.5��15
HF204U14B1(24U14B)
220-240
5
>360
HF112U26B1(1CU16B)
100-120
15

1200
+5,-10�H

>240
148��44.5��15
HF212U26B1(2CU16B)
220-240
14
>360
HF106U16B1(16U16B)
100-120
7
600
+5,-10�H
>240
148��22.5��15
HF206U16B1(26U16B)
220-240
6
>360



UL HI SERIES STANDARD MODEL HEATING ELEMENTS
Model No.
VR
(V)
Ir
(A)
Power
(W)@3.3m/s
W/S Volt.
(V)
Dimension
(mm)
HI433U3BB2
600
20
2300
650
326��9.0��18.8
HI112U43B1
100
20
1130
240
123.6��80��18.8
HI116U44B1
120
20
1500
240
130��100��18.8

When placing an order, please provide specification parameters as indicated in the above tables.

Note 1:The table provides standard heating elements available for production.

Note 2:For element of non-standard dimensions, please send specific inquiries to our sales department.

Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations. Non-
standard unit quotations are usually provided after the fabrication of the prototype.
